Connect sensor cable and power supply cables

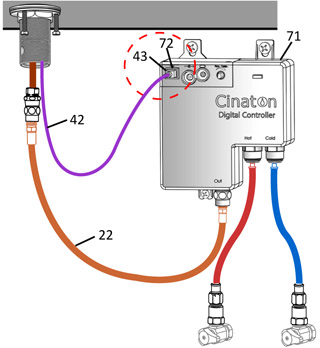

15. Install sensor cable Insert sensor cable connector (43) to sensor cable input port (72) on Digital Controller.

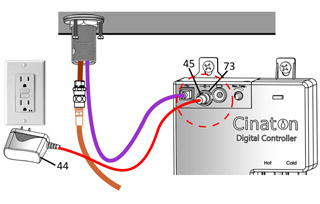

16. Install power supply Insert 6V AC/DC adapter connector (45) to 6V AC/DC input port (73) on Digital Controller.

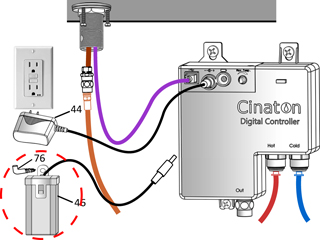

17. Install 4 AA batteries in backup battery box (46) and hang box on wall with L-shape screw (76).

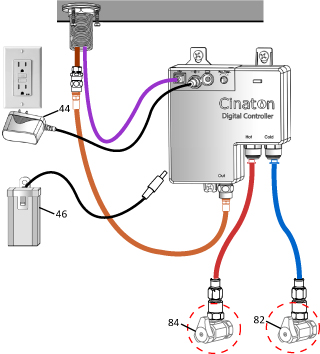

18. Turn on cold and hot water supply valve (82, 84). Check any water leakage.

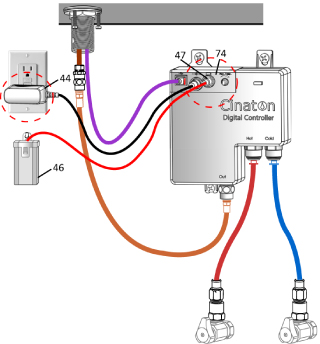

19. Plug the 6 volt AC/DC adapter (44) into an unswitched AC wall outlet (48).Then insert 4 AA DC backup battery plug (47) to backup battery input port (74) on Digital Controller. Installation completed. |
|
