iSense^® Touch Free 5 Sensor Faucet Installation Manual - 1

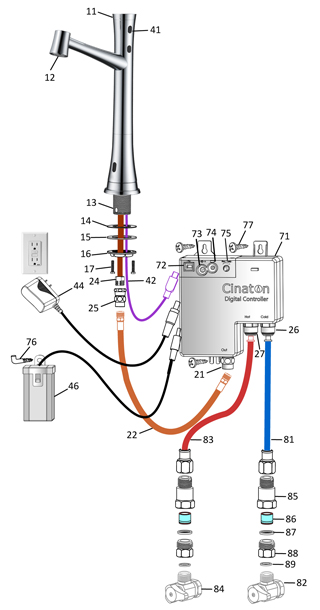

Parts List

11. faucet spout
12. aerator (721102) -1.5 GPM, (721103) - 2.2 GPM
13. (722001) mounting pipe
14. (722011) rubber washer
15. (722021) metal washer
16. (722031) mounting bracket
17. (722034) mounting screw (x3)

21. (721312) 1/2" x 3/8" universal joint
22. spout water outlet hose 3/8" (720006)-swivel,
        (720007)-non-swivel
24. 1/2" spout water inlet connector
25. (721303) 1/2" x 3/8" universal joint
26. (721304) cold water inlet quick connector
27. (721304) hot water inlet quick connector

41. sensor (ABDE:755021) (C: 5. 755022, 7.-755023,
      9.-755024)
42. (705035) sensor cable
44. (750001) AC/DC adapter
46. (750101) 4 AA backup battery box

71. (710000) Digital Controller
72. sensor cable input port
73. AC/DC 6 V input port
74. 4 AA DC backup battery input port
75. maximum temperature adjusting knob
76. (722035) battery box mounting L-shape screw
77. (722036) controller mounting screw (x3)
78. (750110) 4 AA backup battery

81. (720002) cold water supply hose 3/8"
82. cold water supply shut off valve (not included)
83. (720001) hot water supply hose 3/8"
84. hot water supply shut off valve (not included)
85. (721301) 3/8" x 1/2" check valve adapter housing
86. (721201) check valve
87. (721202) strainer
88. (721302) 1/2" x 3/8" adapter for 3/8" shut off valve
89. (721203) water supply washer 3/8"
