How the iSense^® 5 Sensor Faucet works?

1. Cleaning the faucet?

The completely touch free faucet requires very little maintenance. Wipe surfaces clean with a soft, damp sponge or cloth. Never use cleaning chemicals or abrasive material such as a brush, abrasive sponge or scouring pad to clean faucet surfaces or sensors.

2. Cleaning water supply strainer

Water flow may decrease in volume over time as a result of debris trapped by the water supply strainers.

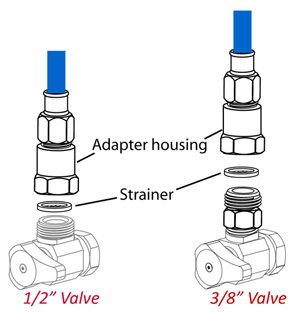

To clear the two strainers (located on the water supply adapter):
- Shut off cold and hot water supply valves.
- Disconnect the 3/8" x 1/2" adapter housings.
- Flush the strainers with water until clear of debris.
- Reinstall the strainer and connect adapter housing.
- Turn on cold and hot shut valve and check any leakage.

3. Resetting the system

Should the system ever malfunction, it may be necessary to perform a reset or reboot.

To reset/reboot:
- Unplug the AC/DC adapter.
- Disconnect the backup battery power wire.
- Wait for 10 seconds to clear the memory.
- Plug the AC/DC adapter and reconnect the backup battery wire. The system will be reset to factory settings.

4. Setting maximum water temperature

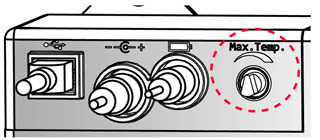

The water temperature adjustment knob on the Digital Controller can be set between 110 F (43.3 C) to 160 F (71.1 C) to prevent scalding risks, especially to children, the elderly and the disabled.

5. Power supply low voltage alart

The visible LED will flash yellow when the low voltage power supply from AC/DC adapter, power cable lost connection, or low 4 AA backup battery voltage. Plug the AC/DC adapter or replace the 4 AA batteries.

6. Automatic calibration

The touch free faucet system will be automatic calibrated periodically. The visible LED will flash in red and green during automatic calibration. The process takes about 30 seconds.
