iSense^® 2 Sensor Faucet Installation Manual

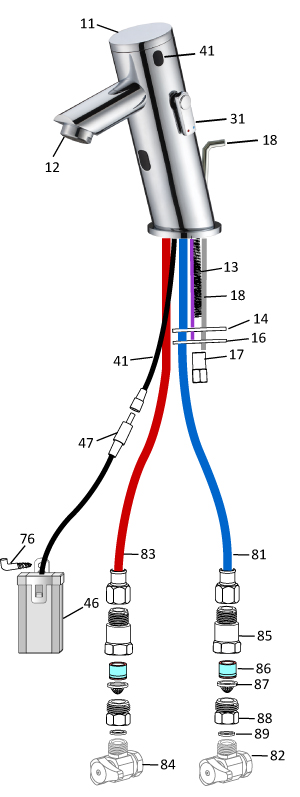

Parts List

11. faucet spout
12. aerator
13. mounting rod
14. rubber washer
16. mounting bracket
17. mounting nut
18. pull rod

31. water temperature adjustment knob

41. 6V DC power supply cable
46. 4 AA battery box
47. 4 AA battery plug

76. 4 AA battery box mounting L-shape screw

81. cold water supply hose 3/8"
82. cold water supply shut off valve (not include)
83. hot water supply hose 3/8"
84. hot water supply shut off valve (not include)
85. 3/8" x 1/2" adapter with check valve housing
86. check valve
87. strainer
88. 1/2" x 3/8" adapter for 3/8" shut off valve
89. 3/8" washer
